The Skinny

Puff ink is a screen printing ink additive that once heat is applied to the ink, it slightly raises from the t shirt like a freshly baked loaf of bread. When designing a shirt you have more options than just art and color - you can also add depth to that list. Puff ink creates a new dimension to a t shirt and is a great way to add some depth to a design.

The Deets

Minimum: 36 pieces

Design Thickness: The design cannot be too thin otherwise the puff affects will be unnoticeable.

Colors: The design has to be a single color print only.

Price: add $2.50 per print.

Request a Quote

How It's Done

Puff Ink is an under utilized way of creating a print that is unique and that can add nice depth to a t shirts design. Normally, when designers think of creating a shirt they think in 2 dimensions - what colors to use, what shapes in the art, how big to make a design etc. They rarely think about the actual depth of the shirt. Puff ink creates a thickness to a design which can make a simple design pop.

Like with most any type of screen printing, it all begins in the screen room. Using the right mesh for puff ink is very important. We recommend anywhere from a 60 mesh to a 90 or 110 mesh. The lower the mesh count, the more open the holes are in the screen, which translates to more ink deposit. The more ink deposit will result in more additive and more "puff" to your print. As always, we make sure to use a screen with good tension, that is clean, and that was properly coated and dried.

The additive we prefer is the Rutland NPT puff. It can be added at a 5%-15% ratio to regular inks. The amount of additive will also determine how much the ink will rise during production.

It is best practice to properly measure your additive by weight in order to get the correct mix. We stir the ink and additive thoroughly before adding it to the screen. For the ink, of course we went with a nice bright green.

Once the job is set up on the press we ink the screens. For the first test print there is no need to dump too much ink on to the screen. This way, if we feel like we need more or less additive, we can take the ink off the screen easily, make our adjustments, then re-add the ink to the screen.

Get a few test prints in and once the settings are locked in production can start.

A shirt is loaded on the press. We decided to go with pink as it actually meshes really nice with the bright green.

Notice the ink in the print above has no depth. The additive in the ink does not start to work until the print is cured. After it goes through the conveyor dryer the ink will start to rise up from the shirt like a loaf a bread baking in the oven.

You can see the ink rise as it comes through the dryer.

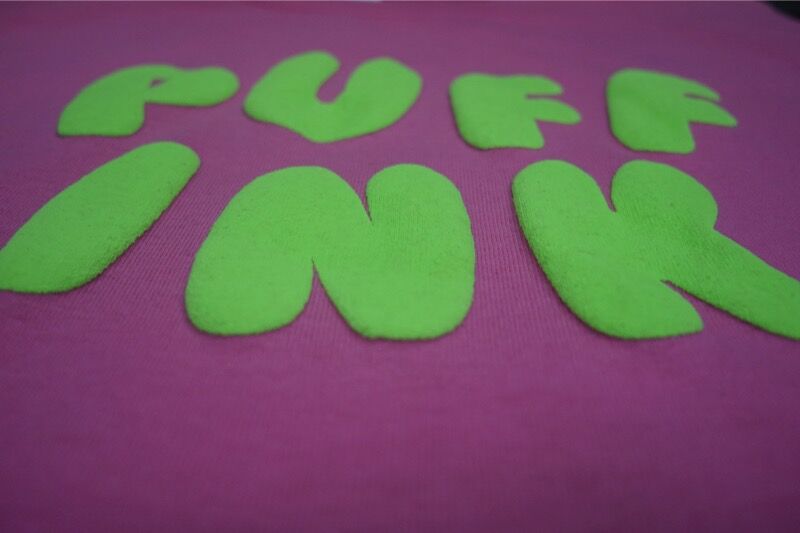

Here is the final product. When placed flat you can definitely see the rise of the print. The effect should last through the wash though it is a little more prone to cracking. The best way to prevent this is to wash the shirts inside out and hang dry.

Contact us if you were interested in adding puff to your next design. If you would like a quote, be sure to mention that you would like puff ink in the notes section. Unfortunately, since puff is a type of specialty printing, you will not be able to place an order directly online, so be sure to contact us so we can help!
